What is the Function of a Hydraulic Clutch Master Cylinder?

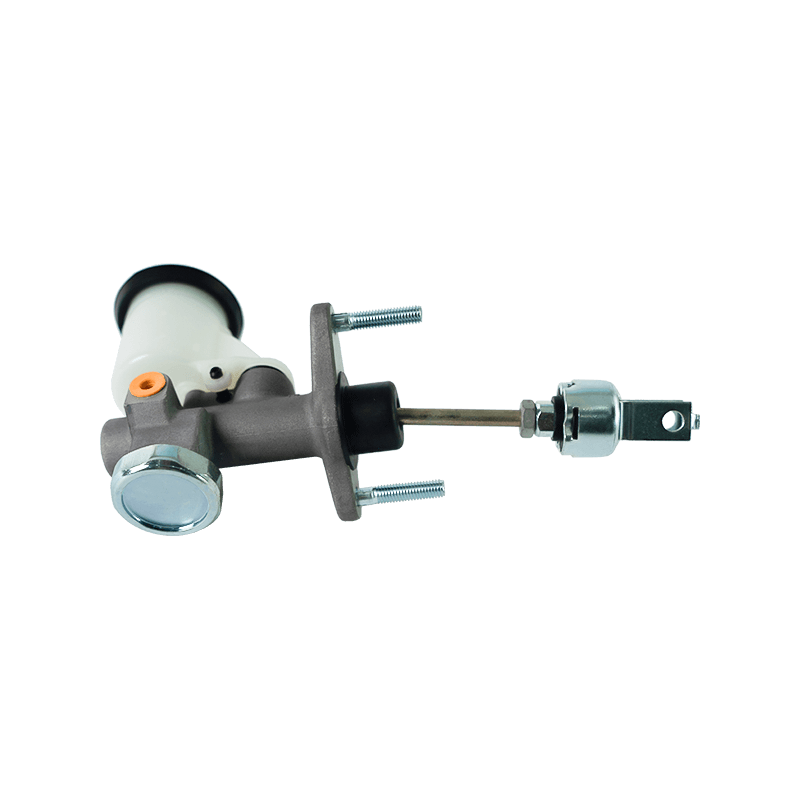

The hydraulic clutch master cylinder (Clutch Master Cylinder) is a core component in the hydraulic clutch system. Its function is to convert the mechanical force applied by the driver's clutch pedal into hydraulic pressure, which is then transmitted to the clutch slave cylinder (Slave Cylinder) via hydraulic lines, ultimately disengaging and engaging the clutch.

1. Function of the Hydraulic Clutch Master Cylinder

Force Transmission and Amplification

The hydraulic force applied by the driver's pedal is converted into hydraulic pressure, amplifying the force through hydraulic principles (Pascal's Law) for easier operation.

Hydraulic transmission offers high efficiency and is lighter than purely mechanical clutches (such as cable-operated clutches), making it particularly suitable for heavy vehicles or high-performance models.

Controlling Clutch Disengagement

Hydraulic pressure is generated by pushing the master cylinder piston, driving the slave cylinder (slave cylinder) to push the clutch fork, separating the pressure plate from the friction plate, severing the power connection between the engine and transmission, and achieving smooth shifting.

Maintaining a tight seal in the hydraulic system

The piston seal inside the master cylinder maintains a tight seal around the hydraulic oil, ensuring stable pressure transmission and preventing air from entering (which can cause clutch failure).

2. Structure and Working Principle

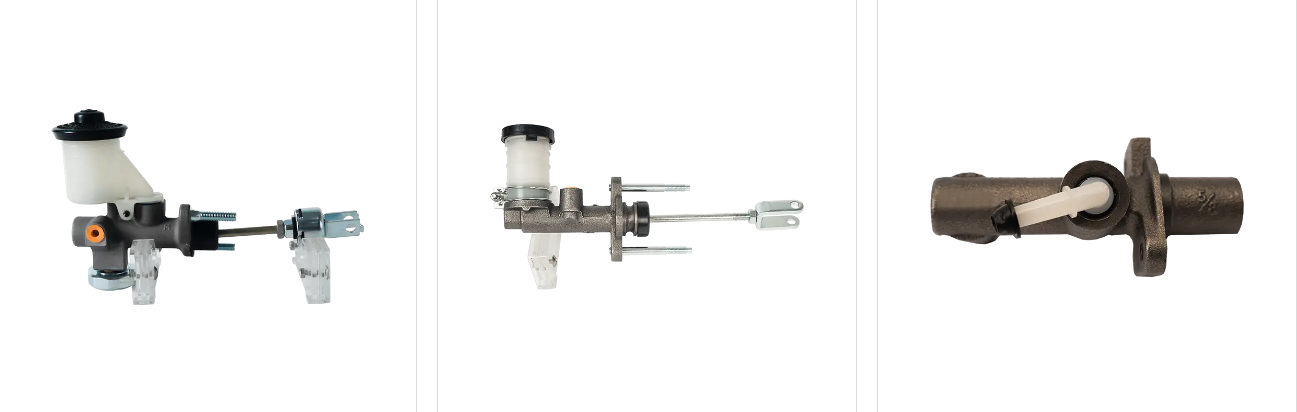

Main Components

Reservoir: Stores hydraulic oil and replenishes the master cylinder.

Piston and push rod: The pedal pushes the push rod, driving the piston to compress the oil.

Compensation hole and oil inlet: Balance pressure and replenish oil.

Seals: Prevent leaks and maintain pressure.

Workflow

Pedal pressed: The push rod pushes the master cylinder piston forward, closing the compensation hole. Pressurized oil enters the pipeline, actuating the slave cylinder.

Release the pedal: The piston returns, the compensation hole opens, oil returns, and the clutch reengages.

3. Common Faults of Hydraulic Clutch Master Cylinders

Common Faults

Soft/no resistance in the clutch pedal: Leakage or air ingress caused by aging master cylinder seals.

Difficult shifting: Insufficient hydraulic pressure or oil contamination.

Pedal failure: Failed master cylinder return spring or stuck piston.

Maintenance Tips

Regularly check the hydraulic oil level and seals.

Avoid using inferior oil (to prevent corrosion of the seals).

Promptly replace any faulty components, as failure to do so may cause complete clutch failure.
