How to Fix a Leaking Hydraulic Clutch Master Cylinder?

The direct answer: a leaking hydraulic clutch master cylinder must be repaired or replaced as soon as possible — continuing to drive with a compromised unit risks complete clutch failure and potential loss of vehicle control. In most cases, clutch master cylinder replacement is the most reliable fix, as internal seal repairs are temporary and often fail again within a short period. This guide walks you through diagnosing the leak, understanding when to repair versus replace, and performing a proper clutch master cylinder replacement safely.

Whether you're a professional mechanic or a hands-on vehicle owner, understanding how the hydraulic clutch master cylinder works — and what goes wrong — is the foundation for a lasting fix.

How a Hydraulic Clutch Master Cylinder Works

The clutch master cylinder is the hydraulic heart of your clutch system. When you press the clutch pedal, it pushes a piston inside the master cylinder, which pressurizes hydraulic fluid and sends that force through a line to the clutch slave cylinder. The slave cylinder then actuates the clutch fork or release bearing, disengaging the clutch plate from the flywheel.

The master cylinder relies on rubber seals (cups and O-rings) to maintain pressure. Over time, these seals degrade due to heat, age, and fluid contamination. When they fail, hydraulic fluid leaks — either externally (visible drips) or internally (bypassing the piston without generating pressure). Either way, clutch engagement becomes unreliable or impossible.

Most hydraulic clutch master cylinders have a service life of 80,000 to 150,000 miles, though harsh driving conditions, contaminated fluid, or infrequent maintenance can shorten this significantly.

Common Signs Your Clutch Master Cylinder Is Leaking

Catching a leaking hydraulic clutch master cylinder early prevents more extensive drivetrain damage. Look for these warning signs:

• Spongy or soft clutch pedal: Loss of resistance when pressing the clutch is one of the earliest and most reliable indicators of internal leakage
• Clutch pedal sinking to the floor: If the pedal drops without resistance, internal bypass has likely occurred
• Low or dropping reservoir fluid level: A gradual drop in the clutch fluid reservoir without visible external leaks points to internal seal failure
• Visible fluid on the firewall or near the pedal box: External leaks around the master cylinder body or at the fluid line connection
• Difficulty engaging gears: Grinding or reluctance when shifting, especially at low speeds
• Clutch slipping or dragging: Incomplete disengagement due to insufficient hydraulic pressure

Repair vs. Replace: Making the Right Call

When a clutch master cylinder begins leaking, you have two options: rebuild it with a seal kit or replace the entire unit. Here is a practical comparison:

For most vehicles with more than 60,000 miles on the original unit, full clutch master cylinder replacement is the more cost-effective and reliable choice. Rebuilt seals on a worn bore rarely hold for more than a season under regular driving stress.

Tools and Materials Needed for Clutch Master Cylinder Replacement

Prepare the following before beginning the job. Having everything on hand prevents delays and fluid spills from an open system.

• Replacement clutch master cylinder (vehicle-specific)
• Fresh DOT 3 or DOT 4 brake/clutch fluid (check vehicle specification)
• Line wrenches (to avoid rounding the hydraulic line fitting — typically 10mm)
• Socket set and ratchet (8mm, 10mm, 12mm common)
• Pliers and screwdrivers
• Brake line cap or plug (to prevent fluid loss while disconnected)
• Catch container and rags (hydraulic fluid damages paint — protect surfaces)
• Turkey baster or fluid transfer pump (to drain reservoir)
• Bleeding kit or a helper for the bleeding step

Step-by-Step: How to Replace a Hydraulic Clutch Master Cylinder

Follow these steps carefully. The process typically takes 1.5 to 3 hours for a DIY mechanic with basic tools.

Step 1 — Drain the Reservoir

Use a turkey baster or transfer pump to remove as much hydraulic fluid as possible from the clutch master cylinder reservoir. This minimizes spillage when disconnecting lines. Place rags around the work area — hydraulic fluid will strip paint on contact.

Step 2 — Disconnect the Hydraulic Line

Locate the hydraulic line fitting at the bottom or side of the master cylinder. Use a line wrench (not an open-end wrench) to avoid damaging the fitting. Once loosened, pull the line away and immediately cap it or hold it above reservoir level to prevent siphoning. Expect some residual fluid to drip.

Step 3 — Disconnect the Pushrod from the Pedal

Inside the cabin (or from the engine bay depending on the vehicle), locate the clevis pin connecting the master cylinder pushrod to the clutch pedal. Remove the cotter pin, then slide out the clevis pin. On some vehicles, this requires removing lower dash trim panels for access.

Step 4 — Remove the Master Cylinder Mounting Bolts

Most clutch master cylinders are secured to the firewall by two bolts (typically 10mm or 12mm). Remove both bolts and carefully pull the cylinder away from the firewall. Twist slightly if needed to clear the mounting studs.

Step 5 — Install the New Clutch Master Cylinder

Before installing, pre-fill the new reservoir with fresh hydraulic fluid. This reduces air in the system and makes bleeding faster. Position the new unit against the firewall, insert and tighten the mounting bolts to the manufacturer's torque spec (commonly 18–25 Nm). Reconnect the pushrod clevis pin and cotter pin. Reattach the hydraulic line and tighten the fitting firmly — do not overtighten as the threads are soft.

Step 6 — Bleed the Hydraulic Clutch System

Bleeding removes air from the system. There are two common methods:

• Two-person bleed: One person slowly pumps the clutch pedal while the other opens the slave cylinder bleed nipple to release air. Repeat until only clear fluid (no bubbles) exits the nipple.
• Vacuum bleed: Attach a hand vacuum pump to the slave cylinder bleed nipple and draw fluid through until all air is purged.

Keep the reservoir topped up throughout the bleeding process. Never let it run dry or air will re-enter the system. After bleeding, the clutch pedal should feel firm with consistent resistance throughout its travel.

Step 7 — Test and Verify

Start the engine and test clutch engagement in a safe area. Check for leaks around the new unit and the hydraulic line connection after a short test drive. Recheck the fluid level and top up if needed.

Critical Mistakes to Avoid During Replacement

Even experienced mechanics can run into trouble with hydraulic clutch work. Avoid these common errors:

• Using the wrong fluid type: Always match the fluid specification to the vehicle (DOT 3 vs. DOT 4 — these have different boiling points and mixing them can degrade performance)
• Cross-threading the hydraulic line fitting: Always start the fitting by hand and confirm it's threading smoothly before applying wrench force
• Skipping the reservoir pre-fill: Installing a dry unit massively increases bleeding time and air bubble risk
• Letting fluid contact painted surfaces: DOT fluid is corrosive to paint — wipe any drips immediately with water
• Forgetting the cotter pin on the clevis: Without the cotter pin, the clevis pin can walk out under use — a serious safety issue
• Incomplete bleeding: Even a small air bubble causes a spongy pedal. Take time to bleed thoroughly before test driving

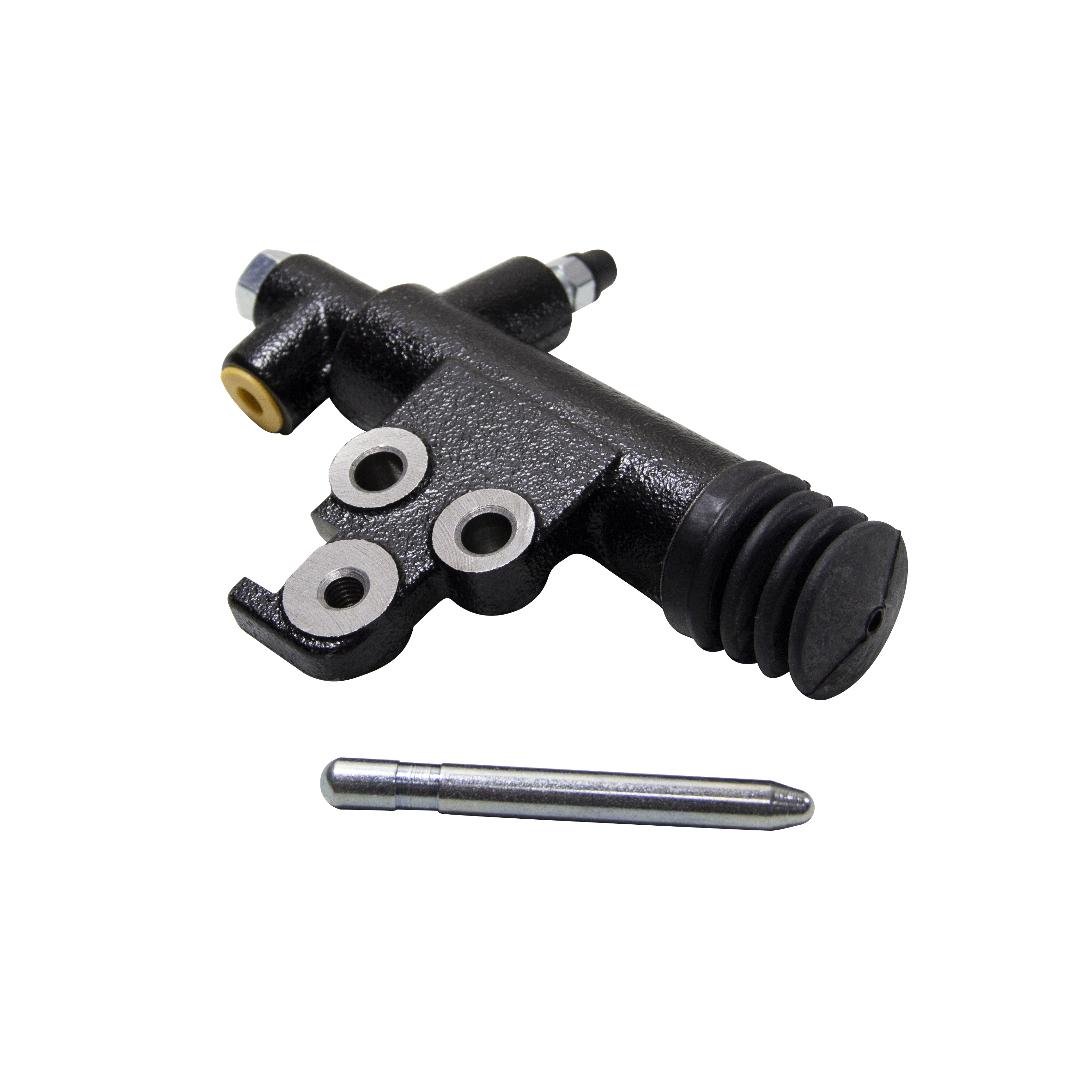

When to Also Replace the Clutch Slave Cylinder

The slave cylinder and master cylinder work as a pair and typically age at similar rates. Industry data suggests that when one fails, the other is within 15,000–20,000 miles of failure in most cases. If your vehicle has over 100,000 miles and the master cylinder has failed, proactively replacing the slave cylinder at the same time is strongly advisable.

Replacing both simultaneously saves labor costs (the system only needs to be bled once) and prevents the frustration of repeating the job within months when the slave cylinder fails next.

How to Extend the Life of Your Clutch Master Cylinder

Proactive maintenance significantly extends the service life of your hydraulic clutch master cylinder. Follow these practical steps:

• Flush clutch fluid every 2 years or 30,000 miles: Hydraulic fluid absorbs moisture over time, lowering its boiling point and accelerating seal corrosion
• Check reservoir level monthly: A gradual drop is the earliest warning of seal degradation
• Avoid resting your foot on the clutch pedal: Constant partial engagement accelerates wear on the master cylinder pushrod and seals
• Use the correct fluid specification only: Mixing fluid grades degrades seal materials and internal coatings
• Inspect for early external leaks at every oil change: A small seep caught early prevents the more complex bleeding and replacement process later
